Application :
- Mainly used to fill edible oil in plastic or glass bottle, widely used in food, chemical, beverages,
and similar products.
- Full filling line is automatic
Description:
- 1) Easy to adjust and no bottle no filling. Accurate filling quantity and has counting function.
- 2) Adopts volume type plunger pump filling with filling suffocate preventing from dropping
and brushed , no bottle no filling , no drop no spill.
- 3) Automatic filling, capping and labeling. Easy operation.
- 4) PLC, control by touch screen
Work process:
- 1) Put bottles on turn table feeding bottles to filling machine automatically
- 2) Bottles conveyed to filling machine to fill automatically
- 3) Bottle conveyed to capping machine cap automatically after filling
- 4) Bottle conveyed to labeling machine label automatically
- 5) Collect bottles with a turn table(optional)
the Whole Line technical parameter
| Speed |
700-1500BPH |
| Filling accuracy |
>99% |
| Filling volume |
100-1000ml, 300-3000ml, 500-5000ml (can be customized) |
| Filling method |
piston+servo motor driven |
| Power |
220V 50/60Hz, 6kw |
| Air supply |
0.6 MPa |
| Bottles applicable |
A wide shape range |
| Application |
Liquid or viscosity products |
| Feature |
PLC, touch screen, tank, level meter |

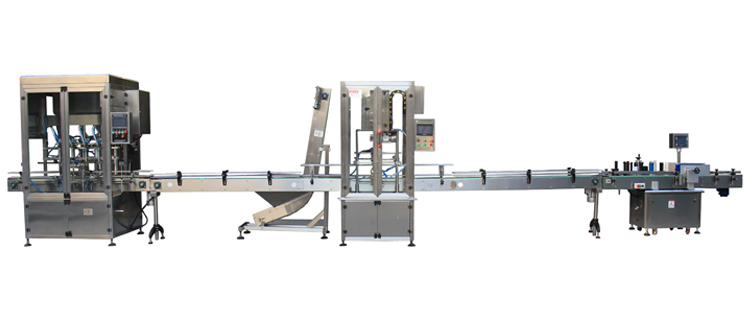

Machine display:

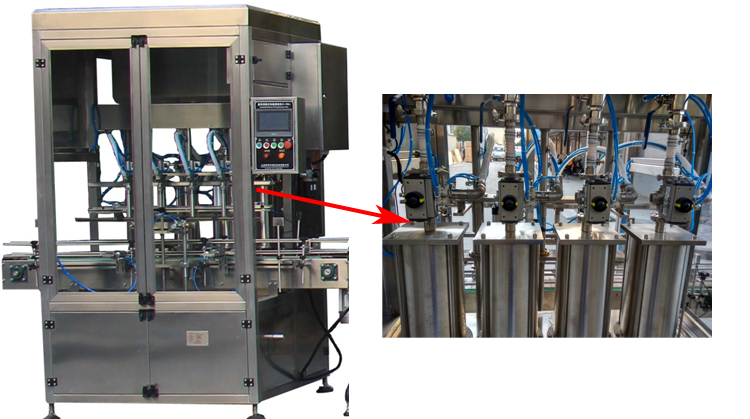

Filling machine:

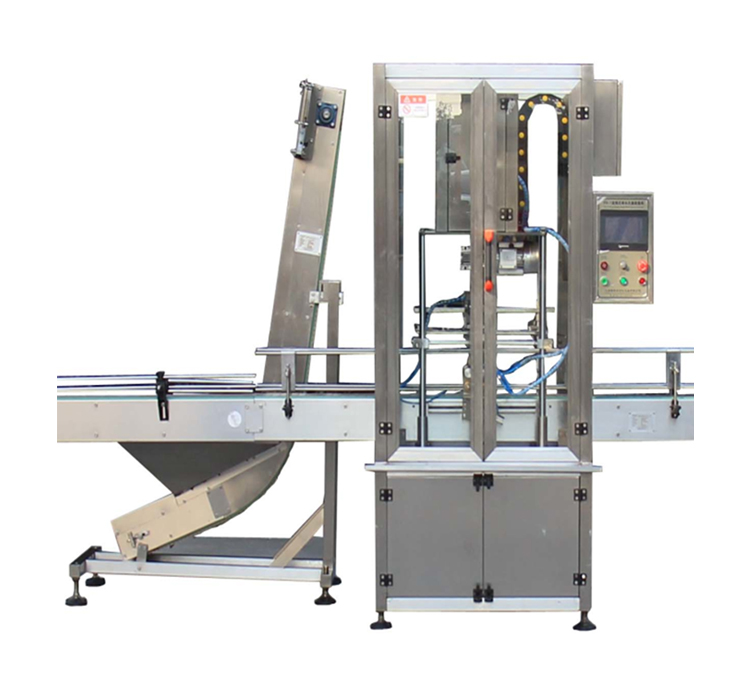

Capping machine:
Labeling machine:
Samples display:
