Auto Capping Machine Application
- Used for Linear Packaging line for all kinds of Screw Caps, Pump Caps, Feeding Caps by hand or automatically
- This type machine is widely used in packaging cosmetic,chemical,foods,pharmaceutical,pesticides industry and so on.
- The bottle capping machine adopts Frequency controlled drive,and transportation exit is adjustable,
- so it could meet different packaging machinery pipeline request.
- It uses PLC programmable control.Structure compact,just used similar size of bottles and caps.
Capping Machine Features
- Automatic Feeding Caps with Feeding Plate and Feeding Track or feed cap by hand
- Turn Table for bottles feeding is optional
- Automatic Linear Capping for different kinds of caps
- We can design capping machine according to customer's special requirements as well.
- Good for small business or Or mass production
Work flow:
- Put cap on bottle by hand or feed cap by cap feeder
- Capping automatically
Parameter
| Speed |
1000-2000 bph (customizable) |
| Capping accuracy |
>99% |
| Caps applicable |
Screw caps or press caps,lug caps,pump caps |
| Caps' diameter range |
20-80mm (can be customized) |
| Power supply |
220V 50hz 1kw |
| Air supply |
0.6MPa |
| Bottle applicable |
a wide shape range |
| Caps feeding device |
Lifter or vibration bowel |
| Feature |
PLC, touch screen |
Two capping heads in one machine

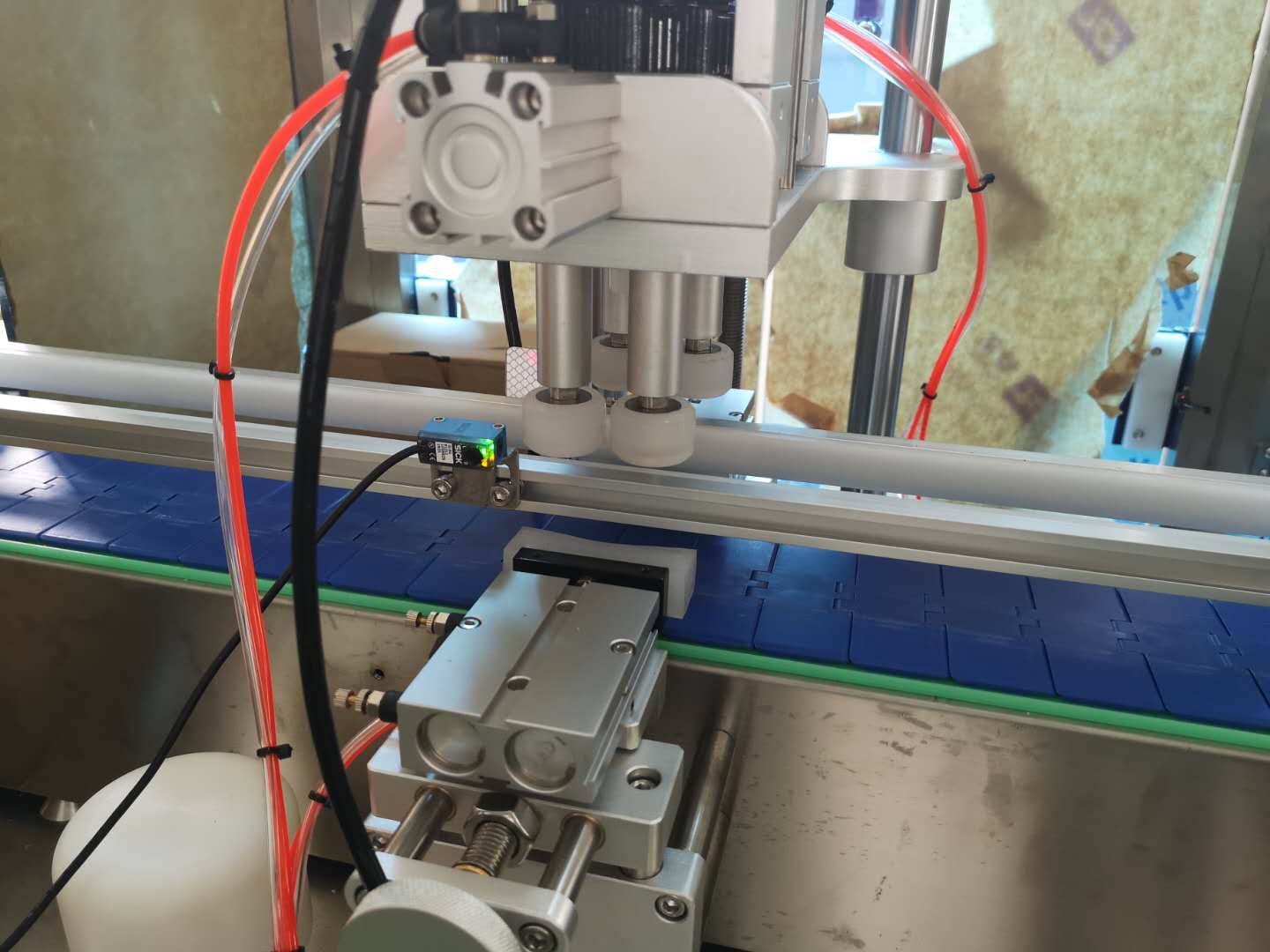

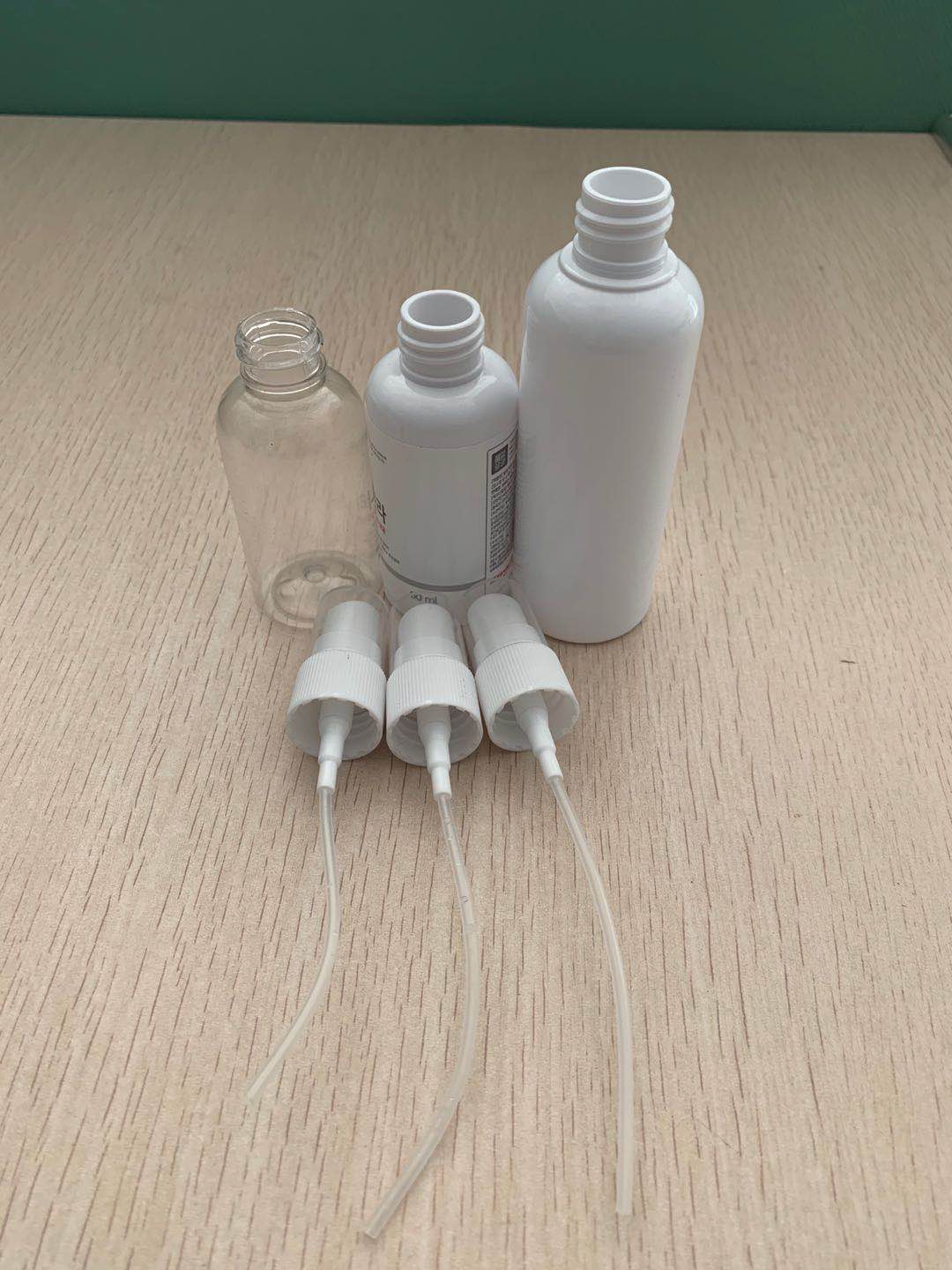

Samples display:
