Labeling Application
- Label Adhesive Paper Sticker to Four Sides labeling on Square Bottle
- Widely used in chemical, cosmetics, pharmaceuticals, food industries, provide solutions for the
packaging line
- Products Applicable: square bottles or products
- Labels Applicable: adhesive paper sticker

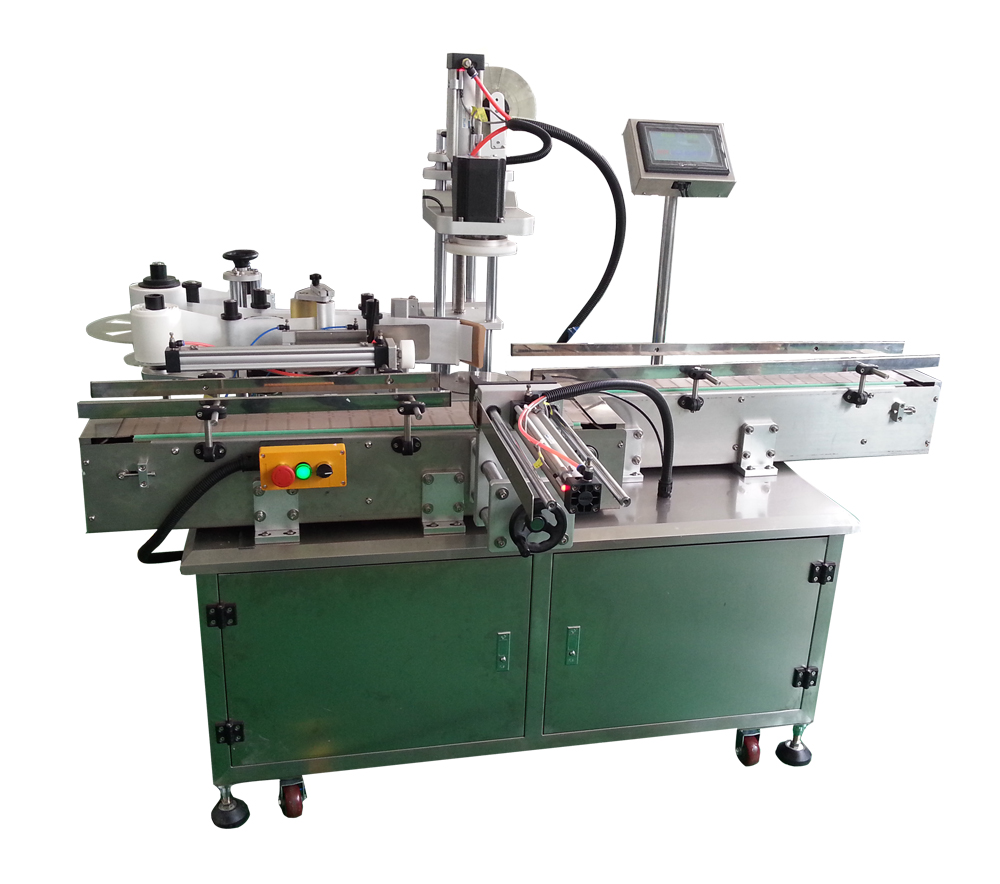

Labeling Machines Features
- The machine is specially designed for big Square bottle 4 sides Labeling
- Labeling machine produced accordance with GMP Standard and CE certificated
- Automatic Labeling, save labor and Labeling results is good
- Easy to operate, labeling controlled by PLC and touch screen. no products, no labeling
- Labeling Steadily, strong S/S frame construction
- Wide Conveyor for big bottles and Air Cylinder to feed and move bottles
- Work independently or connected to a production line
- Labeling Speed is high, and Labeling Accuracy is also high
Options Function for the Labeling Machine
- Coder Printer to print batch number, production date, expiry date and so on on the label when labeling
Technical Parameters
| Speed |
600-1500 bph (related to product size) |
| Labeling accuracy |
+/- 1mm |
| Products applicable |
20mm20mm, 20mm
(customizable) |
| labels applicable |
adhesive stickers/opaque or transparent
10mm10mm
Customize machine for bigger labels |
| Power supply |
220V 50hz 1kw |
| Application |
stick labels on four sides of bottle
|
| Air supply |
0.6MPa(If with a code printer) |
| Feature |
PLC, Touch Screen, high speed |
Samples display:
