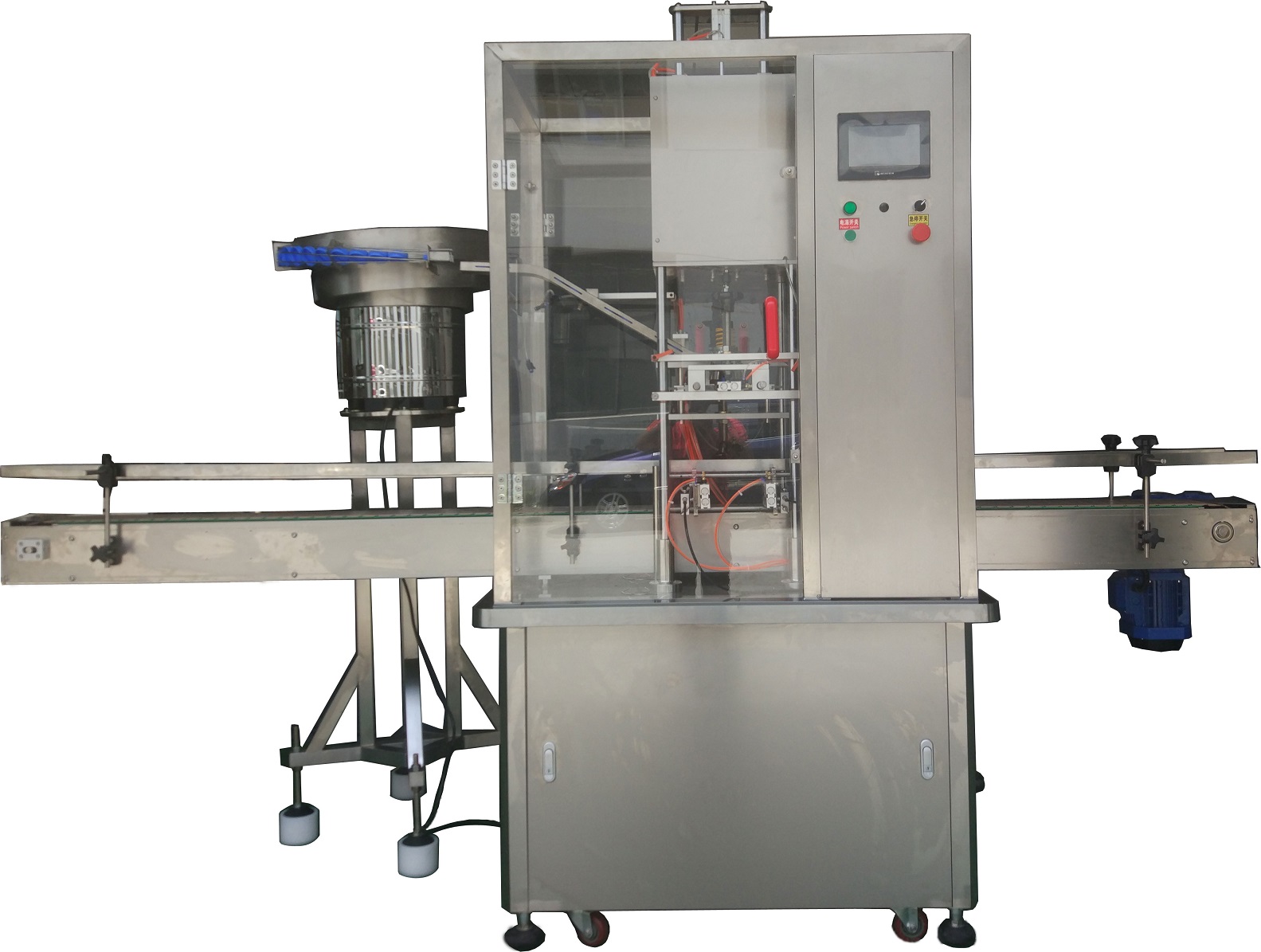

Auto Capping Machine Application
- Used for Linear Packaging line for all kinds of Screw Caps and Press Caps, Tamper-Proof Caps,
automatically Feeding Caps and Capping
- Good for engine oil bottle and deible oil bottle capping. Customized capping machine is available
- More suitable for caps with a diameter exceeding 50mm
Capping Machine Features:

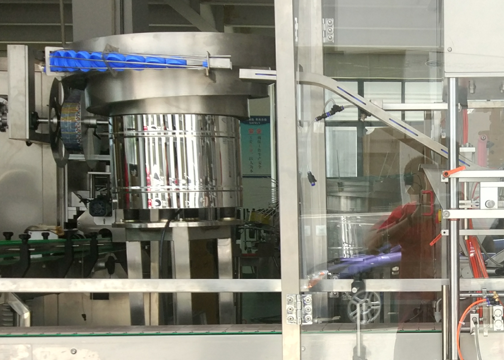

- Automatic Feeding with Feeding Plate and Feeding Track
- Automatic Linear Capping for all kinds of caps
- High precision and good stability
- The machine is operated by touch screen. Easy and convenient.
- E-stop button can stop machine right away once the machine has any problem.

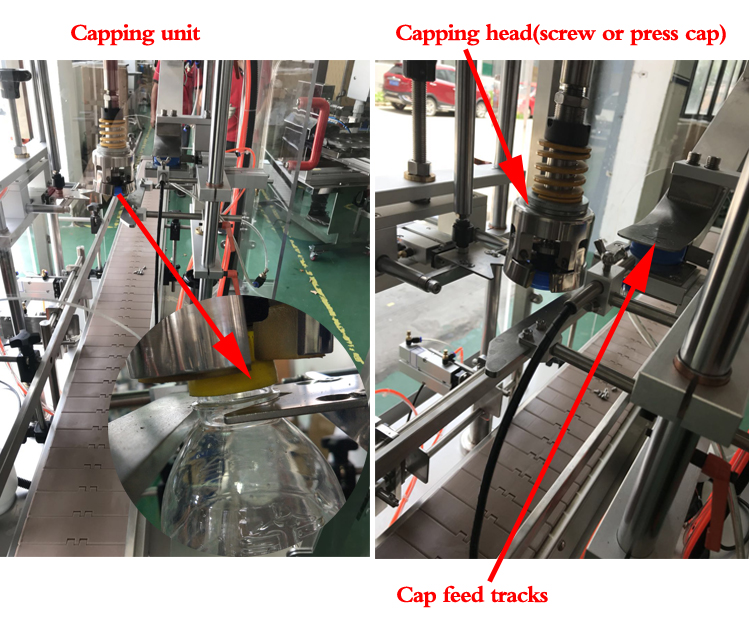

- The capping head can screw cap and press cap. It can change mode by touch screen.
Workflow:
- 1) Manually put bottles on the conveyor
- 2) Automatic feeding caps from lift machine or vibration plate
- 3) Bottles conveyed to capping machine to screw/press cap automatically
- 4) Collect bottles with a turn table(optional)
Paremeter
Speed |
1000-1500 bph (customizable) |
Capping accuracy |
more than 99% |
Caps applicable |
Screw caps or press caps |
Caps' diameter range |
20-80mm (can be customized) |
Power supply |
220V 50hz 1kw |
Air supply |
0.6MPa |
Bottle applicable |
a wide shape range |
Caps feeding device |
Lifter or vibration plate |
Feature |
PLC, touch screen |

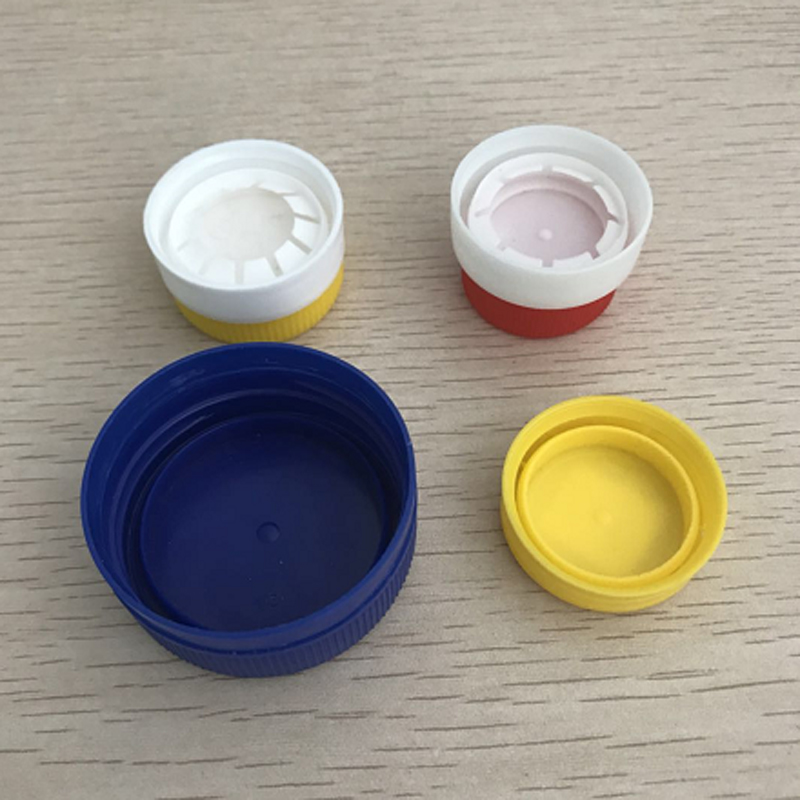

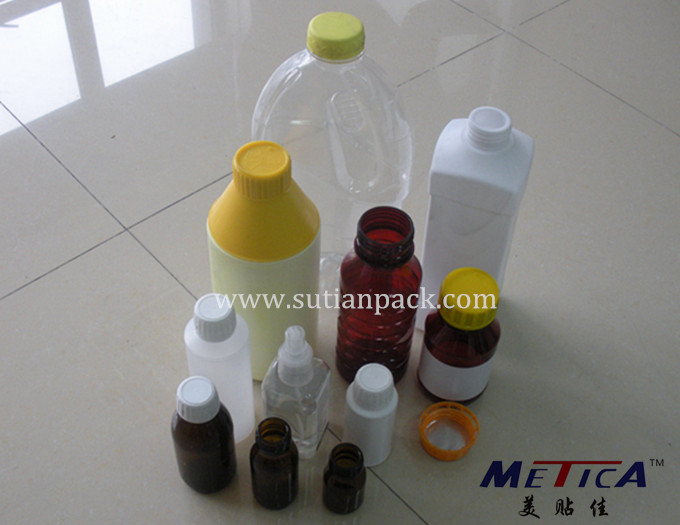

Samples display:
